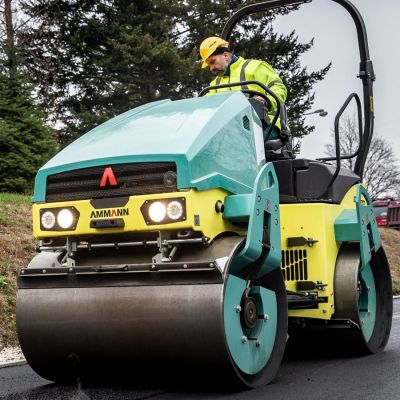

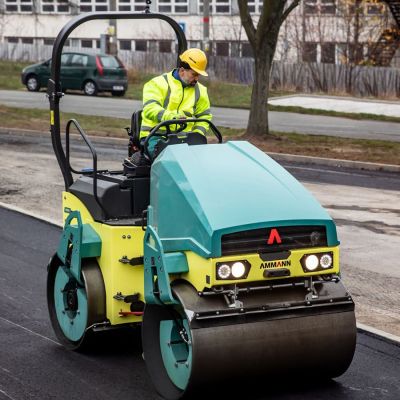

THE HEAVIEST COMPACT ROLLER With a weight of 4650 kg, the Ammann ARX 45 Tandem Roller is the heaviest compact roller in the product line. Double drive and double vibration are standard and help deliver optimum compaction outputs of 55 kN. The ARX 45 still delivers the benefits of a compact roller and is able to work flush against curbs and other objects. An electronic drive lever makes for smooth starting and stopping and is among the reasons the roller is popular with operators. The tandem roller is built with high quality, long-lasting components that reduce the cost of ownership over the lifetime of the machine. It is reliable, economical, safe and fuel efficient.
OPERATING WEIGHT CECE 4650 kg (10251.5 Ib)
OPERATING WEIGHT MAX. 5100 kg (11243.6 Ib)
STATIC LINEAR LOAD (FULL-FLUSH) 16.8 kg/cm (37 Ib)
TURNING RADIUS INSIDE 2621 mm (103.2 in)
STEERING / OSCILLATING ANGLE 32/8 ±°
DRUM OFFSET 40 mm (1.57 in)
